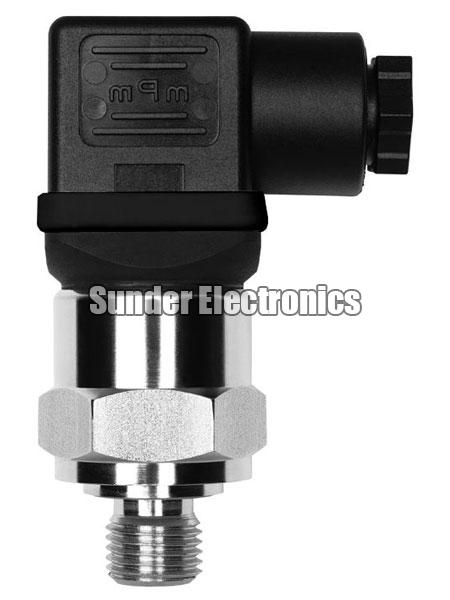

Pressure Transmitter

Pressure Transmitter

Pressure Transmitter is used for measuring the relative (gauge) pressure in liquids and gases. The Pressure Transmitter that we offer incorporates a thick-film strain gauge as a measuring device. The pressure sensor has an aluminium-oxide (Al2O3) ceramic base material. With the help of the Pressure Transmitter, pressure is converted into an electrical signal. It is protection with terminal box IP65 to EN 60 529 (diameter of connecting cable 5 mm min., 7 mm max.) with connecting cable or circular connector M 12 x 1IP67 to EN 60 529.

Additional Features :

  • Housing stainless steel, Mat. Ref. 1.4305
  • EPDM
  • Electrical connection terminal box to DIN 43 650, style A, conductor cross-section up to 1.5 mm2 or attached 4-core PVC cable, length 2 m, other lengths on request or 4-pole circular connector, M12x1
  • Nominal position : any
  • Weight : 100 g
